When it comes to high-performance alloys that combine excellent corrosion resistance with outstanding mechanical strength, 254 SMO RIn industries where strength, durability, and corrosion resistance are crucial, the selection of material can significantly impact performance and longevity. One such material that stands out in demanding environments is the 254 SMO Round Bar. Known for its superior corrosion resistance, especially in chloride-rich conditions, 254 SMO has gained widespread recognition in industries like marine, chemical processing, pulp and paper, and offshore oil and gas.
This comprehensive guide will walk you through the specifications, standards, composition, mechanical properties, and applications of the 254 SMO Round Bar, helping you make informed decisions for your next project.
What Is 254 SMO?
254 SMO is a high-alloy austenitic stainless steel developed for maximum resistance to pitting and crevice corrosion. It is designated as UNS S31254 and is known for its high levels of molybdenum (approximately 6%) and nitrogen. This composition grants it excellent strength and resistance to localized corrosion in aggressive environments such as seawater, brine, and acidic media.

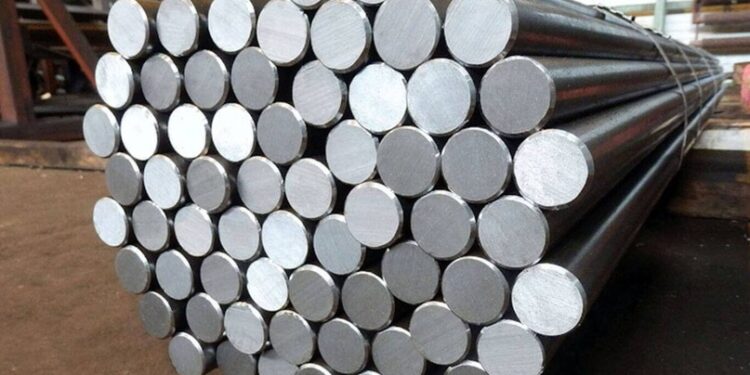

The 254 SMO Round Bar is a form of this alloy, shaped into cylindrical solid bars and used in various structural and mechanical applications. These round bars are widely preferred for their uniform strength, smooth finish, and versatility.
International Standards and Specifications
When sourcing 254 SMO Round Bar, it is essential to understand the international standards that govern its production and quality. These standards ensure consistency, reliability, and compliance with industry requirements.
ASTM & ASME Standards
- ASTM A276: Standard for stainless steel bars and shapes.
- ASTM A479: Specification for stainless steel bars for pressure vessels.
- ASME SA276 / SA479: ASME equivalents for ASTM standards.
EN Standards
- EN 1.4547: European designation for 254 SMO.
- Werkstoff Nr. 1.4547: Material number used in Germany and Europe.
These standards define chemical composition, mechanical properties, tolerances, and surface finishes for 254 SMO Round Bar, ensuring that the product meets global performance expectations.
Chemical Composition
The unique corrosion resistance of 254 SMO Round Bar comes from its well-balanced chemical makeup. Below is the typical chemical composition:
| Element | Percentage (%) |
|---|---|
| Carbon (C) | ≤ 0.020 |
| Manganese (Mn) | ≤ 1.00 |
| Silicon (Si) | ≤ 0.80 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.010 |
| Chromium (Cr) | 19.5 – 20.5 |
| Nickel (Ni) | 17.5 – 18.5 |
| Molybdenum (Mo) | 6.0 – 6.5 |
| Nitrogen (N) | 0.18 – 0.22 |
This blend enhances the material’s resistance to crevice corrosion, stress corrosion cracking, and pitting in chloride-containing environments.
Mechanical Properties
Another standout feature of 254 SMO Round Bar is its impressive mechanical strength. The alloy combines the strength of high-performance stainless steels with enhanced corrosion resistance.
| Property | Value |
|---|---|
| Tensile Strength | ≥ 650 MPa |
| Yield Strength (0.2% Offset) | ≥ 300 MPa |
| Elongation | ≥ 35% |
| Hardness (Brinell) | ≤ 223 HB |
| Modulus of Elasticity | 195 GPa |
These properties make the material ideal for structural applications in harsh operating conditions.
Physical Properties
Understanding the physical characteristics of 254 SMO Round Bar can also help engineers and designers make more accurate calculations:
- Density: 8.0 g/cm³
- Melting Point: 1320–1390°C
- Thermal Conductivity: 12 W/m·K at 100°C
- Electrical Resistivity: 0.95 µΩ·m
These properties support its use in heat exchangers, pressure vessels, and marine equipment where thermal and electrical performance is a factor.
Available Sizes and Tolerances
254 SMO Round Bar is manufactured in a wide range of sizes and can be customized to meet specific project requirements. Common dimensions include:
- Diameter: 6 mm to 300 mm or larger upon request
- Length: Standard lengths range from 3 meters to 6 meters; custom lengths available
- Tolerance: Typically follows ASTM A484 or ISO H9/H10 standards
Finishes can range from hot-rolled and annealed to cold-drawn or polished, depending on application needs.
Applications of 254 SMO Round Bar
Due to its outstanding corrosion resistance and mechanical strength, 254 SMO Round Bar is used across multiple industries:
1. Marine Industry
Ideal for propeller shafts, seawater cooling systems, and offshore platforms, thanks to its high chloride resistance.
2. Chemical Processing
Used in reactors, tanks, and piping systems where exposure to aggressive chemicals is frequent.
3. Pulp and Paper Industry
Resistant to corrosion from chlorine compounds used in bleaching processes.
4. Oil and Gas
Applied in offshore oil drilling platforms, subsea components, and heat exchangers due to its stress corrosion cracking resistance.
5. Desalination Plants
Commonly used in evaporator tubing and other components exposed to saline solutions.
Benefits of Using 254 SMO Round Bar
Here are some key advantages of using 254 SMO Round Bar in your projects:
- High resistance to pitting and crevice corrosion
- Better mechanical strength compared to 300-series stainless steels
- Excellent weldability and formability
- Cost-effective alternative to more expensive nickel alloys
- Long service life in harsh environments
Testing and Quality Assurance
Reputable manufacturers ensure that each 254 SMO Round Bar undergoes stringent quality checks, including:
- Ultrasonic Testing (UT)
- Positive Material Identification (PMI)
- Intergranular Corrosion Testing (IGC)
- Mechanical testing for tensile, yield, elongation, and hardness
- Mill Test Certification (EN 10204 3.1/3.2)
These procedures guarantee that the bars meet both customer and regulatory expectations.
Conclusion
The 254 SMO Round Bar is a premium-grade material designed for the most demanding industrial applications. Its outstanding resistance to corrosion, especially in chloride-rich and acidic environments, combined with excellent mechanical properties, make it a top choice for engineers and fabricators across the globe.
Whether you’re building offshore structures, installing chemical processing equipment, or sourcing materials for desalination systems, 254 SMO Round Bar provides the performance and reliability your project needs. Always source from trusted suppliers to ensure you receive high-quality, certified material tailored to your specifications.
