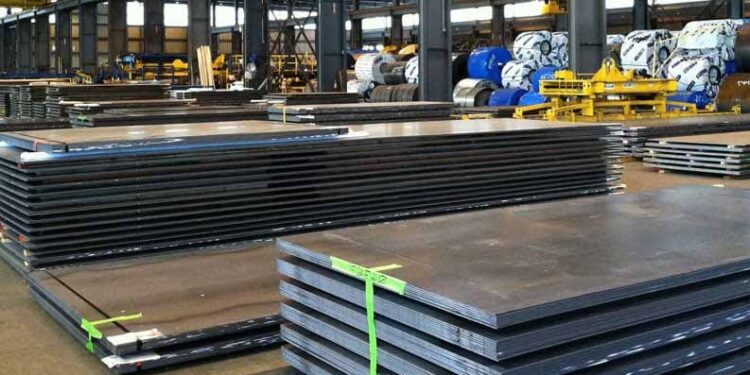

If you work in industries like oil and gas, power generation, or heavy manufacturing, you’ve likely encountered SA 516 GR 70 plates — a crucial material renowned for its strength and reliability in high-pressure environments. This article will take you through everything you need to know about SA 516 GR 70 Plates, including their chemical composition, material properties, applications, and why they are preferred in so many critical projects.
What is SA 516 GR 70 Plate?
SA 516 GR 70 is a carbon steel plate specifically designed for use in pressure vessels and boilers. It’s standardized under the ASTM A516 specification, which covers carbon steel plates intended for moderate and lower temperature service. Among its grades (grades 55, 60, 65, and 70), Grade 70 is the highest in terms of strength and is widely used in high-pressure applications.
The “SA” prefix denotes that it conforms to standards set by ASTM International, a globally recognized organization for material specifications.
Key Features of SA 516 GR 70 Plates
- High tensile strength and excellent weldability
- Suitable for moderate and lower temperature service
- Good notch toughness
- Resistant to cracking under pressure
Because of these properties, SA 516 GR 70 plates are extensively used in industries where safety and durability are paramount.
Chemical Composition of SA 516 GR 70
Understanding the chemical composition of SA 516 GR 70 is essential to grasp why this material performs so well under pressure. The chemical makeup determines the mechanical properties, weldability, and resistance to corrosion and cracking.
Here’s a table showing the typical chemical composition range for SA 516 GR 70:
| Element | Percentage (%) |
|---|---|
| Carbon (C) | 0.27 max |
| Manganese (Mn) | 0.75 – 1.20 |
| Phosphorus (P) | 0.035 max |
| Sulfur (S) | 0.035 max |
| Silicon (Si) | 0.10 – 0.35 |
| Copper (Cu) | 0.35 max |
| Nickel (Ni) | 0.40 max |
| Chromium (Cr) | 0.30 max |
| Molybdenum (Mo) | 0.08 max |
Mechanical Properties of SA 516 GR 70 Material
The SA 516 GR 70 material boasts impressive mechanical properties that make it ideal for pressure vessel manufacturing:
| Property | Value |
|---|---|
| Tensile Strength | 485 – 620 MPa |
| Yield Strength (0.2% offset) | 260 MPa (minimum) |
| Elongation | 21% (minimum) |
| Impact Test | V-notch 27 J at -29°C |
These properties allow the plate to withstand high stress and pressure without failure, which is why it’s favored for boilers and storage tanks.
Why Choose SA 516 GR 70 Plates?
1. Excellent Weldability
One of the primary advantages of SA 516 GR 70 plates is their excellent weldability. This makes fabrication easier, especially for complex pressure vessels and large-scale industrial tanks.
2. High Strength-to-Weight Ratio
Grade 70 offers a superior strength-to-weight ratio, meaning it can bear heavy loads without excessive thickness, saving material costs and weight.
3. Good Toughness
The plate maintains toughness even at lower temperatures, making it suitable for environments where the material could be exposed to cold conditions.
Applications of SA 516 GR 70 Plates
Given its combination of strength and toughness, SA 516 GR 70 plates are used extensively in:
- Pressure vessels: Storage tanks, boilers, and heat exchangers
- Power plants: Components exposed to high pressure and moderate temperature
- Petrochemical and chemical plants: Vessels handling volatile or hazardous chemicals
- Shipbuilding: Structural elements requiring high strength and durability
Manufacturing and Standards
SA 516 GR 70 plates are produced under strict ASTM specifications, ensuring consistent quality across batches. The manufacturing involves:
- Controlled rolling processes to achieve uniform mechanical properties
- Heat treatment to improve toughness and relieve stresses
- Testing protocols including tensile, impact, and bend tests to ensure compliance
Understanding ASTM A516 Specification
ASTM A516 is the specification covering carbon steel plates for moderate and lower temperature service, with four grades: 55, 60, 65, and 70.
| Grade | Minimum Tensile Strength (MPa) | Yield Strength (MPa) | Common Usage |
|---|---|---|---|
| 55 | 415 – 550 | 205 | Lower strength applications |
| 60 | 440 – 570 | 215 | General pressure vessel plates |
| 65 | 460 – 590 | 240 | Medium strength requirement |
| 70 | 485 – 620 | 260 | High strength pressure vessels |
Among these, Grade 70 is the most widely used because of its optimal balance between strength and toughness.
Chemical Composition vs Mechanical Performance
The relationship between the chemical composition and the mechanical performance of SA 516 GR 70 plates is key to its functionality.
- Carbon content controls hardness and strength but too much reduces weldability.
- Manganese helps improve strength and toughness.
- Silicon enhances strength without compromising ductility.
- Phosphorus and sulfur are kept minimal to reduce brittleness.
- Alloying elements like copper, nickel, chromium, and molybdenum improve corrosion resistance and mechanical properties.
This balanced composition is why SA 516 GR 70 plates are both strong and reliable under various conditions.
Tips for Selecting SA 516 GR 70 Plates
When choosing SA 516 GR 70 plates for your project, consider:
- Thickness requirements: Plates come in a range of thicknesses, usually from 6 mm up to 150 mm.
- Application temperature: SA 516 GR 70 is suitable for moderate and lower temperatures, but not high-temperature service.
- Welding needs: If extensive welding is involved, verify the plate’s weldability certification.
- Certification and testing: Always check the mill test reports to ensure compliance with ASTM A516 standards.
Handling and Fabrication
SA 516 GR 70 plates are relatively easy to fabricate due to their good weldability and machinability. However, handling precautions should be taken:
- Store plates in a dry environment to prevent surface corrosion.
- Use appropriate cutting techniques to maintain edge quality.
- Preheat thicker plates before welding to prevent cracking.
- Perform post-weld heat treatment if required for critical applications.
Conclusion
SA 516 GR 70 Plates are a cornerstone in industries requiring materials that deliver strength, toughness, and reliability under pressure. Their chemical composition and material properties make them uniquely suited for manufacturing pressure vessels, boilers, and storage tanks, especially where safety is non-negotiable. For detailed information and sourcing options, many professionals refer to resources like indiangeek.in to stay updated on quality suppliers and technical insights.
