In industries where aggressive chemicals and high-purity fluids are transported through complex piping systems, effective filtration becomes a non-negotiable requirement. For such demanding environments, the PVDF Y Strainer stands out as one of the most reliable and corrosion-resistant filtration components available today.
Engineered from Polyvinylidene Fluoride (PVDF), this Y-type strainer is built to resist harsh acids, solvents, and high temperatures while ensuring efficient particle separation. If you’re managing a chemical processing plant, pharmaceutical facility, or high-purity water system, buying a PVDF Y Strainer is a strategic choice to enhance your system’s safety, performance, and longevity.
In this comprehensive guide, we’ll explore the key features, benefits, industrial applications, and technical specifications of PVDF Y strainers—and why they are trusted for fluid filtration across critical sectors.

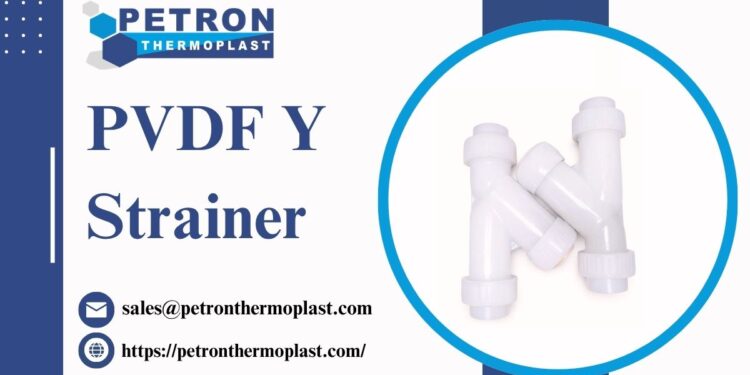

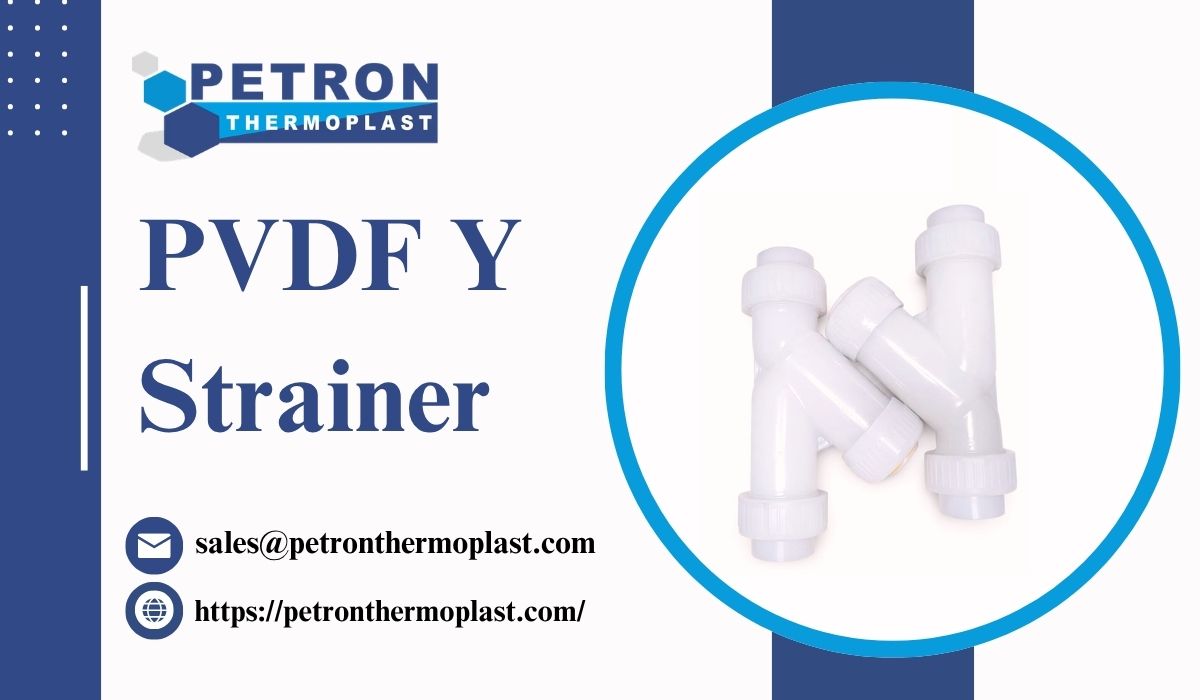

What Is a PVDF Y Strainer?
A Y Strainer is a mechanical filter that removes unwanted solids from liquids, gases, or steam lines using a perforated or mesh screen. The “Y” configuration refers to the shape of the body, which allows efficient filtration with minimal pressure loss.
When constructed from PVDF (Polyvinylidene Fluoride), the strainer becomes particularly suited for corrosive, high-purity, or high-temperature applications. PVDF is a semi-crystalline fluoropolymer that offers exceptional resistance to chemicals, UV radiation, and thermal degradation—qualities that make it a superior material for fluid handling in harsh industrial environments.
Why Buy a PVDF Y Strainer?
Chemical Resistance
PVDF has outstanding resistance to strong acids, bases, halogens, and many organic solvents. This makes the strainer ideal for chemical process lines and aggressive media.
High Thermal Stability
PVDF Y strainers can operate continuously at elevated temperatures (up to 120°C), ensuring safe operation in hot fluid systems.
High Purity & Low Leaching
PVDF is widely used in industries like pharmaceuticals and microelectronics because it does not leach contaminants, making it ideal for high-purity applications.
UV & Weather Resistant
This material resists UV degradation, allowing for long-term outdoor installation without compromising performance.
Long Service Life
With its robust construction and inert properties, a PVDF Y strainer offers superior durability and reduced maintenance compared to metal or other plastic strainers.
Key Features of PVDF Y Strainers
When you invest in a high-quality PVDF Y strainer, you gain access to performance features that ensure efficiency and reliability across your system:
- Reinforced PVDF Body: Offers structural integrity in high-pressure and high-temperature environments.
- Replaceable Stainless Steel or PVDF Mesh: Efficiently traps debris without rusting or contaminating the media.
- Easy Access Cap or Plug: Allows for quick cleaning or replacement of the filter element.
- Compact Y Design: Provides excellent flow dynamics with low-pressure drop.
- Universal End Connections: Available in socket, threaded, or flanged configurations.
- Seal Options: Compatible with EPDM or FKM seals based on your chemical handling needs.
Technical Specifications
| Parameter | Specification |
| Body Material | PVDF (Polyvinylidene Fluoride) |
| Strainer Mesh Material | PVDF, PTFE, or Stainless Steel |
| Seal Options | EPDM, FKM (Viton), or PTFE |
| Operating Pressure | Up to 10 bar (145 psi) |
| Temperature Range | -20°C to +120°C |
| End Connections | Threaded (BSP/NPT), Socket, Flanged (DIN/ANSI) |
| Mesh Sizes | 50 micron to 800 micron |
| Sizes Available | DN15 (½”) to DN100 (4″) |
| Standards | DIN 3441, ASTM D3222, ISO 10993 |
Applications of PVDF Y Strainers
Chemical Processing Plants
PVDF Y strainers are ideal for filtering strong acids, alkalis, and solvents. They prevent solid buildup and protect pumps, control valves, and flow meters from damage.
Pharmaceutical Manufacturing
In high-purity systems, PVDF’s non-leaching and contamination-free characteristics ensure compliance with strict cleanliness standards.
Water Treatment Facilities
Used in filtration lines, reverse osmosis (RO) systems, and chemical dosing pipelines to trap particles and improve water quality.
Food & Beverage Utilities
Though not for direct food contact, PVDF Y strainers are used in CIP systems, cleaning lines, and chemical dosing where hygiene and corrosion resistance are crucial.
Microelectronics & Semiconductors
Where ultra-pure water and high-cleanliness pipelines are required, PVDF Y strainers provide reliable protection against particulate contamination.
Installation and Maintenance Tips
To ensure optimal performance of your PVDF Y strainer, consider the following best practices:
Correct Orientation
Install the Y strainer so the debris collection chamber points downward—this allows for gravity-assisted sediment collection and easier maintenance.
Use the Right Mesh
Select the mesh size based on the particles you expect to trap. Too fine a mesh can cause frequent clogging, while too coarse may allow contaminants to pass through.
Periodic Cleaning
Open the strainer cap or plug periodically to remove accumulated debris and clean or replace the mesh.
Monitor Pressure Drop
An increase in pressure drop across the strainer may indicate clogging. Timely maintenance can prevent flow restrictions and downstream issues.
Why Buy PVDF Y Strainers from Petron Thermoplast?
At Petron Thermoplast, we are committed to delivering high-performance fluid handling solutions that meet the highest standards of quality and durability. Our PVDF Y strainers are precision-engineered for demanding industrial environments and are widely trusted by professionals across sectors.
What We Offer:
- Wide range of sizes and end connections
- Custom mesh sizes and seal materials
- Quick shipping across India and the Middle East
- Expert technical support and consultation
- Competitive pricing with guaranteed product quality
Conclusion
When it comes to fluid filtration in harsh chemical, pharmaceutical, or high-purity environments, the PVDF Y strainer offers unmatched durability, chemical resistance, and ease of maintenance. Whether you’re upgrading an existing system or designing a new one, choosing a high-quality PVDF Y strainer ensures clean operation, reduced maintenance, and protection for critical system components.
