A PVDF Spool for Chemical Transfer Pipeline Modification is a specialized piping component used to connect, extend, reroute, or replace sections of chemical transfer pipelines in industrial process systems. Chemical manufacturing plants, water treatment facilities, pharmaceutical units, semiconductor industries, and other process plants often need to modify existing piping networks to accommodate new equipment, expand production capacity, improve process efficiency, or replace aging pipeline sections.
PVDF, or polyvinylidene fluoride, is a high-performance thermoplastic material selected for many demanding applications because of its resistance to a wide range of aggressive chemicals and its ability to perform in challenging industrial environments. A properly designed PVDF spool can provide a prefabricated piping section that simplifies pipeline modification and helps achieve accurate connections between existing pipework and new equipment.
For chemical transfer applications, the PVDF spool should be engineered according to the process fluid, chemical concentration, temperature, pressure, pipe dimensions, connection requirements, and installation conditions.
What Is a PVDF Spool?

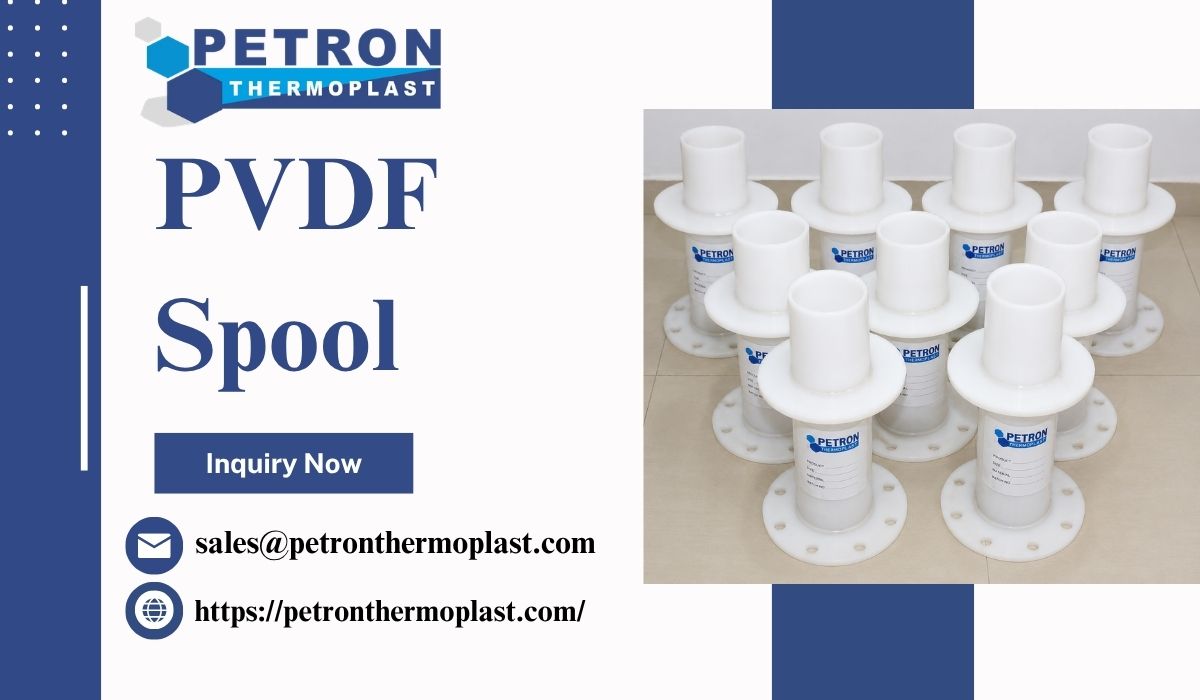

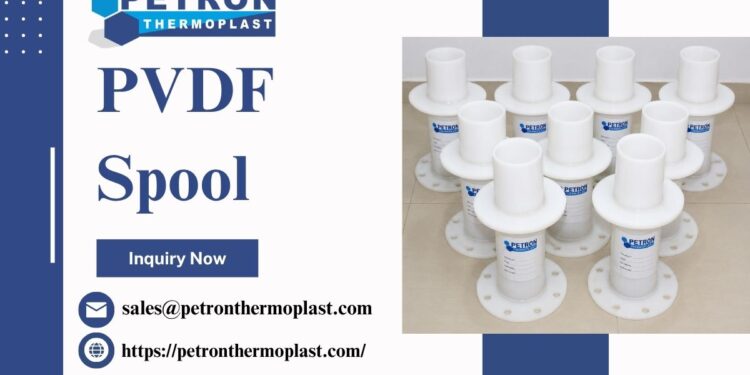

A PVDF spool is a prefabricated section of PVDF piping manufactured to a specified length and configuration. It may include straight pipe sections, bends, branches, flanges, fittings, or other connection points depending on the project requirements.
Spools are commonly fabricated according to engineering drawings or site measurements. They are then installed as part of a larger piping system.
A PVDF spool can be designed for:
- Pipeline extensions
- Pipe rerouting
- Equipment connections
- Pipeline replacement
- New branch connections
- Process line modifications
- Tank connections
- Pump connections
- Valve integration
Why Use PVDF for Chemical Transfer Pipelines?
Chemical transfer systems can expose piping components to aggressive fluids and challenging operating conditions. Material selection is therefore critical for maintaining system reliability.
PVDF is used in selected chemical handling applications because it offers resistance to many corrosive chemicals and process fluids.
Potential advantages of PVDF include:
- High chemical resistance
- Good corrosion resistance
- Suitable performance in demanding process environments
- Lightweight thermoplastic construction
- Smooth internal surfaces
- Reduced risk of metallic corrosion
- Compatibility with selected high-purity applications
Role of PVDF Spools in Pipeline Modification
Industrial piping systems often evolve as plants expand and production requirements change. A pipeline originally designed for one process may later need to be modified to connect additional equipment or accommodate a new process line.
PVDF spools can simplify these modifications by providing prefabricated sections designed to fit specific pipeline layouts.
Common modification requirements include:
- Extending an existing chemical transfer line
- Connecting a new storage tank
- Relocating process equipment
- Installing additional pumps
- Adding a new branch pipeline
- Replacing damaged pipe sections
- Modifying pipeline routing
- Connecting new valves or instruments
PVDF Spool for Chemical Transfer Lines
Chemical transfer pipelines are used to transport fluids between storage tanks, process vessels, pumps, dosing systems, and production equipment.
When these pipelines require modification, the new piping section must match the existing system in terms of:
- Pipe diameter
- Wall thickness
- Connection configuration
- Material compatibility
- Pressure requirements
- Temperature requirements
- Flow direction
Custom Fabrication of PVDF Spools
Industrial pipeline modifications rarely follow a standard configuration. Each plant may have different equipment layouts, pipe routing, access limitations, and connection requirements.
Custom PVDF spool fabrication allows the piping component to be manufactured according to project-specific dimensions.
Custom features may include:
- Specific spool lengths
- Elbow configurations
- Branch connections
- Flanged ends
- Customized fittings
- Equipment connection points
- Drain connections
- Vent connections
Applications of PVDF Spools
PVDF spools can be considered for various industrial applications.
Chemical Manufacturing
Chemical plants use transfer pipelines for acids, solvents, reagents, and other process chemicals. PVDF spools can be used in compatible chemical services.
Water Treatment
Water treatment facilities may use PVDF piping components in chemical dosing and transfer systems.
Pharmaceutical Processing
Certain pharmaceutical applications require corrosion-resistant and clean piping systems. PVDF can be considered for compatible process fluids and applications.
Semiconductor and Electronics Industries
PVDF is used in selected high-purity chemical handling systems where material performance and cleanliness are important.
Industrial Wastewater
Treatment systems may require corrosion-resistant piping for handling chemically contaminated fluids.
PVDF Spool for Chemical Plant Expansion Projects
When a chemical plant expands its production capacity, existing piping networks often require modification.
New process equipment may need to be connected to:
- Chemical storage tanks
- Transfer pumps
- Process vessels
- Dosing systems
- Filtration units
- Distribution headers
- Treatment equipment
PVDF Spools for Pipeline Replacement
A damaged or degraded pipeline section may need to be removed and replaced.
A replacement PVDF spool can be fabricated according to the dimensions of the removed section. This approach may help simplify repair work and reduce the duration of process interruptions.
Replacement planning should consider:
- Existing pipe dimensions
- Connection type
- Chemical compatibility
- Operating pressure
- Operating temperature
- Pipe support arrangement
- Installation access
Connection Methods
PVDF spools can be designed with different connection arrangements depending on the application.
Possible configurations include:
- Flanged connections
- Butt fusion connections
- Socket connections
- Fittings
- Customized equipment interfaces
Design Considerations for PVDF Spools
Proper engineering is essential when designing a PVDF spool for chemical transfer pipeline modification.
Important design considerations include:
Chemical Compatibility
The PVDF material should be suitable for the process chemical at the required concentration and temperature.
Operating Temperature
The spool should be designed for the actual process temperature and expected temperature variations.
Pressure
The pressure rating should be suitable for the pipeline operating conditions.
Pipe Size
The spool dimensions should match the existing piping system.
Flow Requirements
The internal diameter and configuration should support the required process flow.
Installation Space
The spool should be designed according to the available space and access conditions.
Thermal Expansion
Thermal movement should be considered, particularly in systems exposed to significant temperature changes.
Pipe Supports
Adequate support should be provided to prevent excessive loads on the spool and connected equipment.
PVDF Spool for Chemical Transfer Pipeline Modification
A PVDF Spool for Chemical Transfer Pipeline Modification provides a practical solution for industrial facilities that need to modify, extend, replace, or reroute existing chemical transfer pipelines. Its prefabricated configuration can help simplify installation while providing a customized connection between existing pipework, tanks, pumps, valves, and process equipment.
PVDF is selected for many demanding applications because of its resistance to numerous compatible chemicals and its suitability for specialized industrial environments. However, material selection must always be based on the actual chemical service and operating conditions.
Petron Thermoplast provides thermoplastic piping solutions for industrial chemical handling and process applications. Custom PVDF spools can be considered for chemical transfer pipelines, process piping modifications, plant expansion projects, equipment connections, and pipeline replacement requirements.
For successful pipeline modification, the spool should be engineered according to accurate site dimensions and approved piping drawings. Chemical compatibility, operating temperature, pressure, pipe size, connection type, flow requirements, thermal expansion, and support arrangements should all be evaluated.
With proper engineering, custom fabrication, quality inspection, and professional installation, PVDF spools can support efficient pipeline modification projects and help industrial facilities develop reliable chemical transfer systems suited to their specific process requirements.
